YK100 Copper Plasma Cutting Torch

The YK100 is a copper cutting torch specifically designed for use with LGK-100 or LGK-120

 series plasma power supplies. Its core focus is on economy and durability, emphasizing

 ease of maintenance and stable cutting capabilities. Key information is as follows:

* **Core Parameters:** Typically used with 100A-120A current, suitable for 6-16mm thick plates.

 Nozzle orifice diameters are available in 1.2mm, 1.6mm, and 1.8mm sizes, flexibly handling

cutting needs from thin to medium-thick plates.

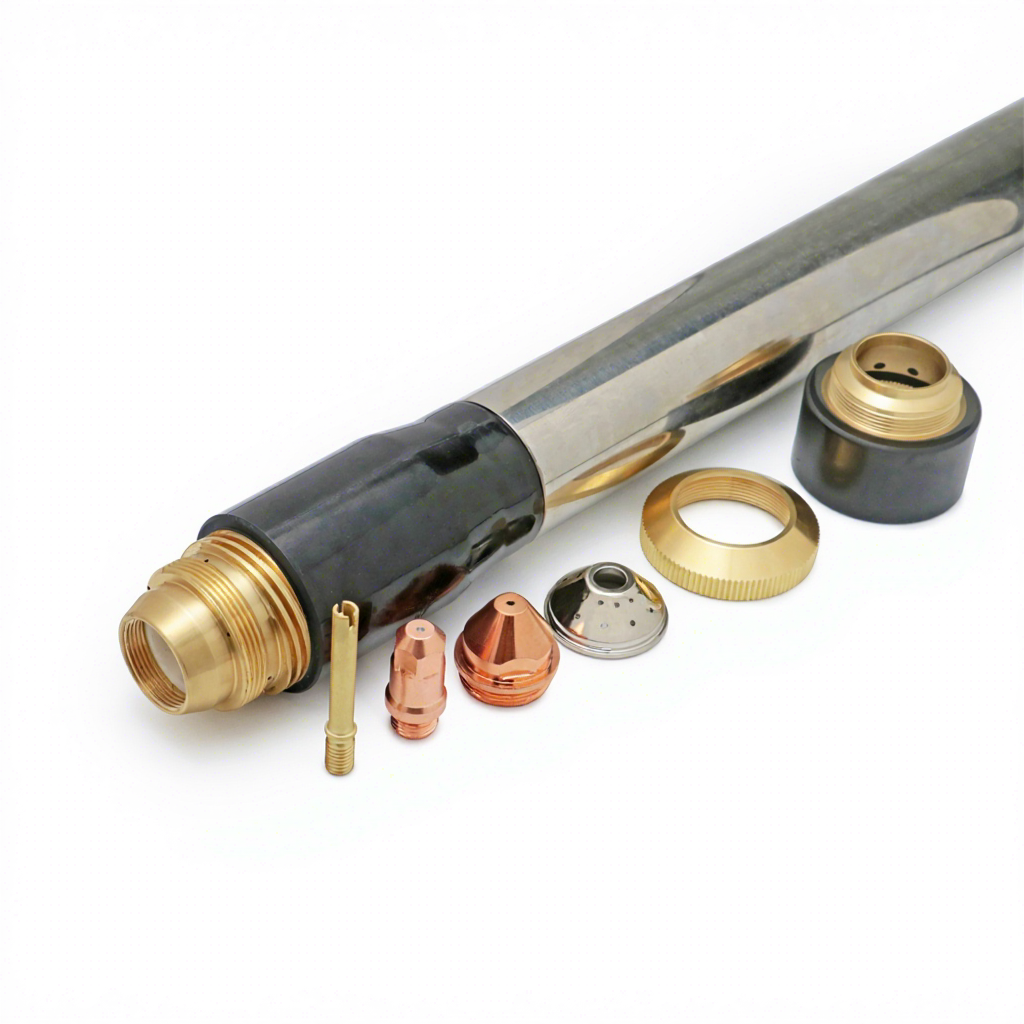

* **Components:** Employs a modular design, primarily consisting of the torch body (YK100101),

 electrode (YK100102), nozzle (YK100103), protective cover (YK100104), and mounting cap. These are consumable parts, readily available and inexpensive.

* **Materials and Manufacturing Process:** The main body uses a copper-chromium-zirconium

 (CuCrZr) alloy, offering excellent electrical and thermal conductivity. The electrode utilizes a

 high-purity tungsten-copper composite structure, effectively mitigating high-temperature wear

 and extending service life. • Market compatibility: It has strong compatibility and is widely used

 in many plasma devices with common interfaces, in addition to domestic power supplies such

 as Huayuan. It is also relatively easy to replace.
